Some of our CAD Projects
Container Modification

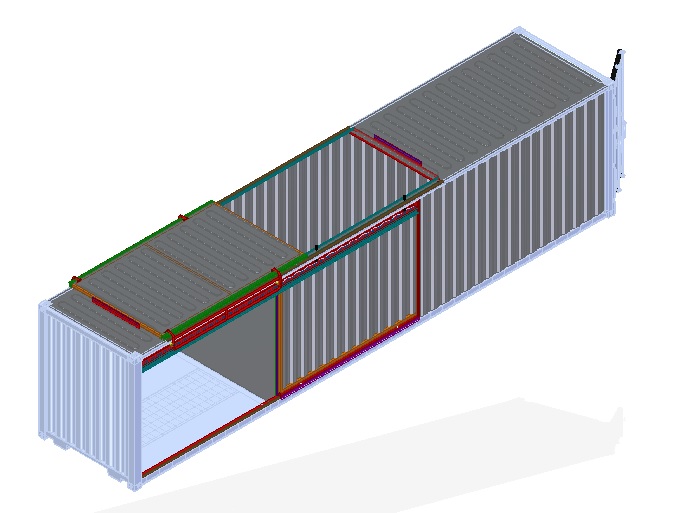

Client required standard container to be modified with extra openings on top and side.
The openings were such designed to prevent rain water entering into the container when in closed position.
Detailed design was made with details of the angle and fabrication components to be used to ensure flawless manufacturing of the container as per the design.
Product Modelling

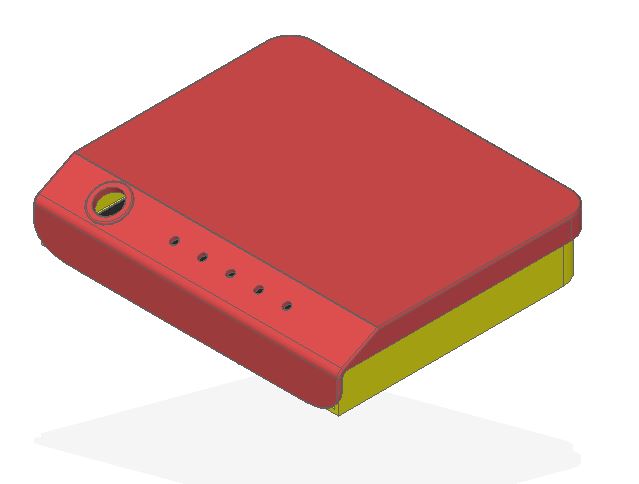

3D Product designed for client manufacturing medical instruments.

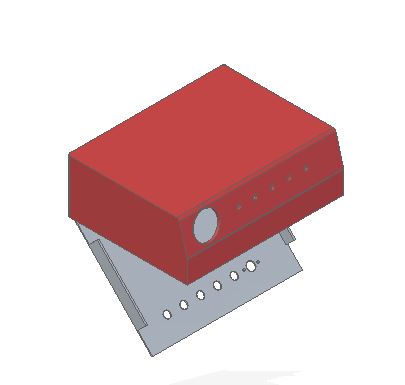

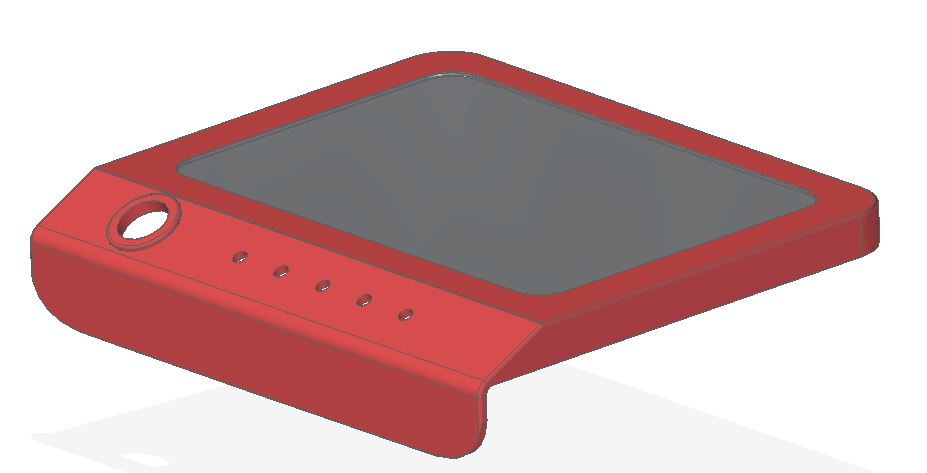

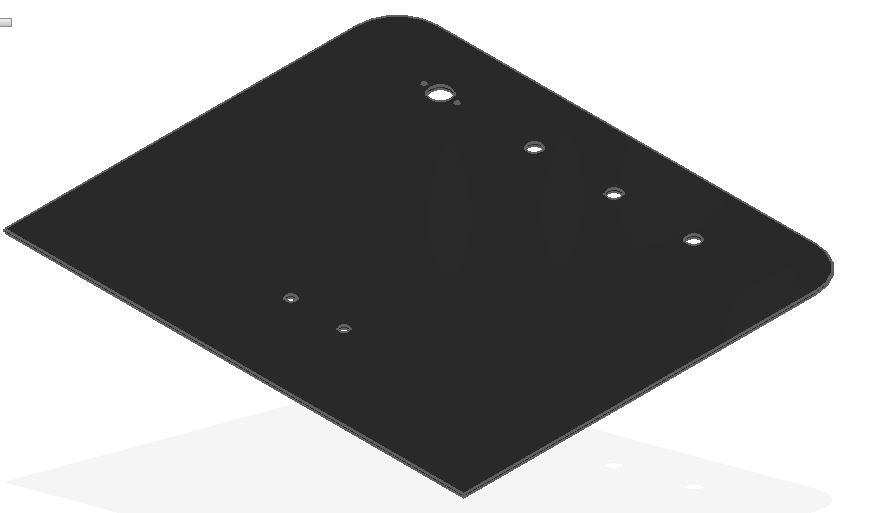

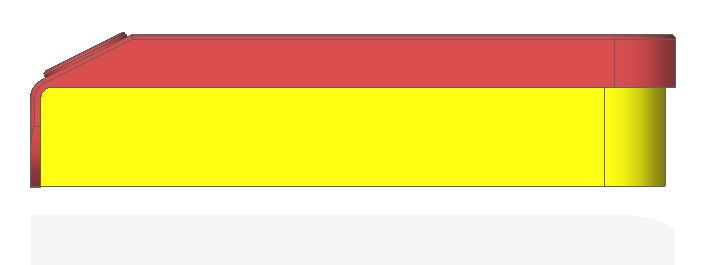

Product designed is an assembly with multiple components having variations in design with provision for various components like PCB, control switches etc in the housing.
CNC Engraving machine

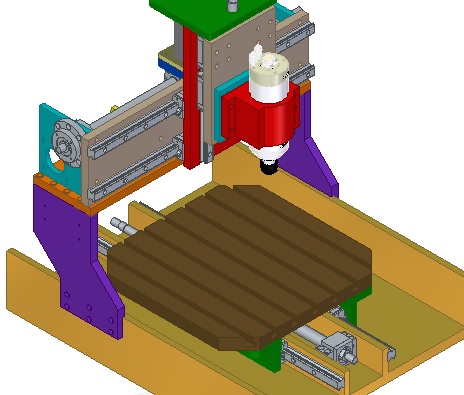

Complete detailed Designing of a CNC Engraving machine done for a client.
Design includes selection of critical components such as LM Guides, Servo motors, Spindle required for machine working along with detailed drawings of all the mechanical components required for sturdy structure of the machine.
3D Scanning

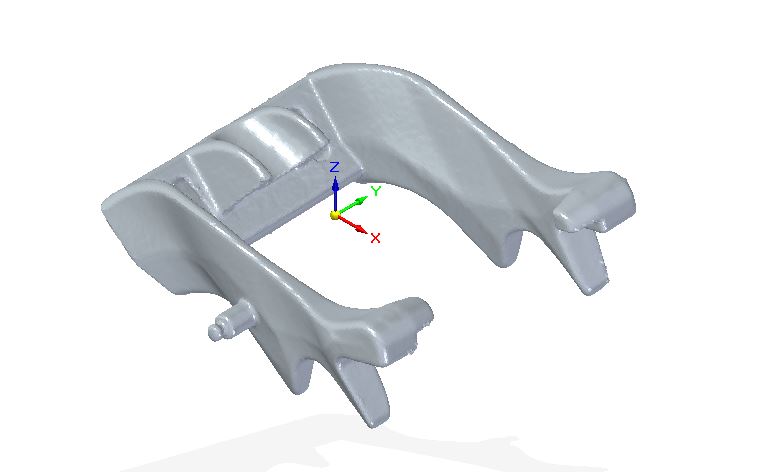

3D Scanning of a part done for reverse engineering for a client.
